K3000
Reanin
Reanin-K3000 is a professional, cost-effective polyurethane spray and injection machine. It is equipped with a specially designed horizontal booster pump, which not only has small fluctuations in working pressure, but also has less wearing parts and is easy to maintain.
Application

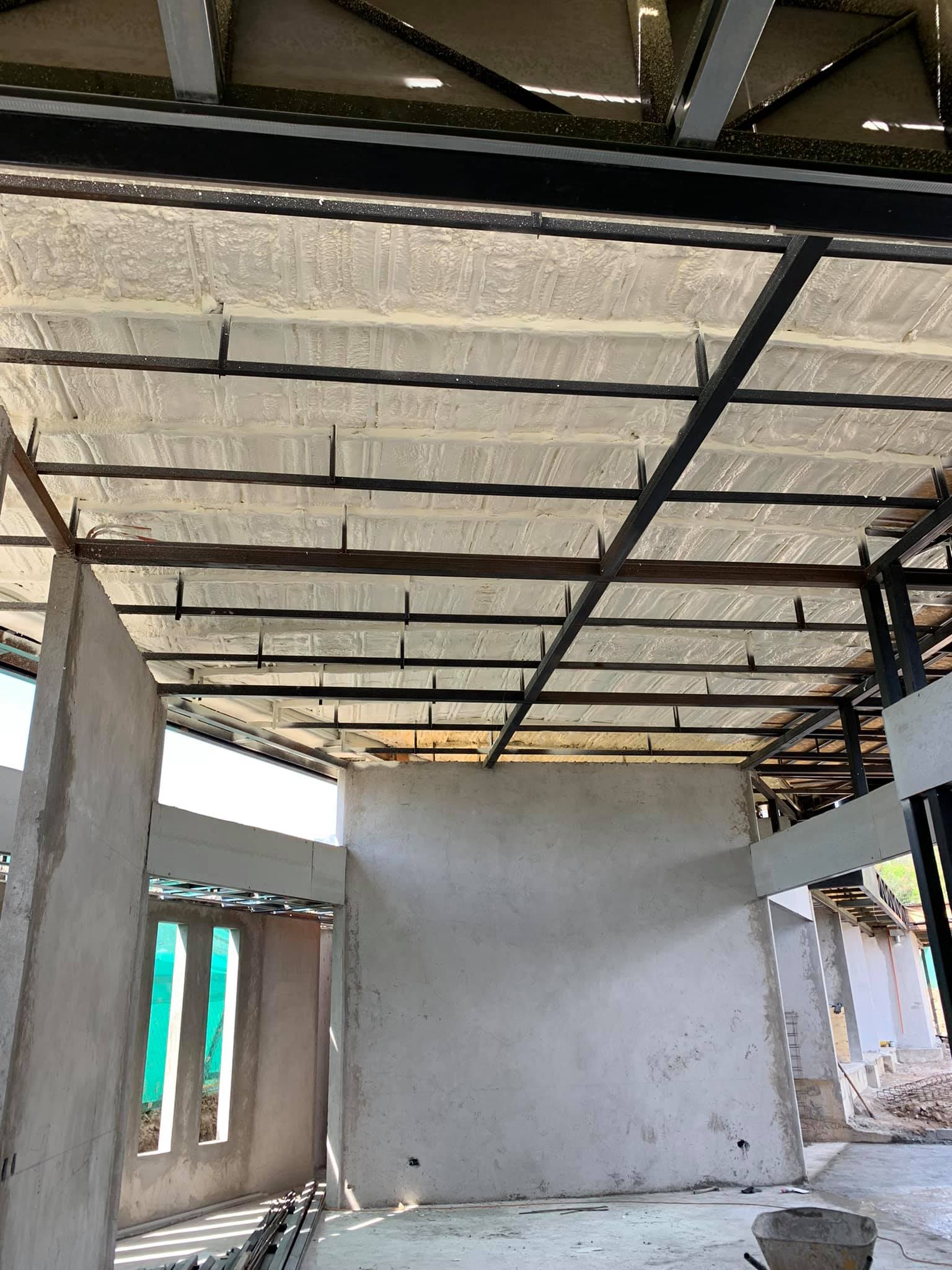

Reanin K3000 Polyurethane Spray Foam Machine can be widely used in building insulation and waterproofing, highway subgrade waterproofing or repairing, railway subgrade waterproofing, automobile thermal insulation and sound insulation, ship anti-corrosion and waterproofing, cold storage thermal insulation and other fields.
Technical Parameters
Model Reanin-K3000 Polyurethane Spray Machine
Applicable materials Polyurethane
The ratio of raw material 1:1
Viscosity range of raw materials 200-1000CPS (under working temperature)
Max working pressure 20MPa
Max fluid temperature 80°C
Max output 11kg/min
Max heated hose length (Optional) 90m
Heater power 4500W×2
Heated hose max power 3000W
Drive mode Full pneumatic
Clean mode Self-cleaning by air
Voltage (Optional) Single phase 220V 50HzThree phase 380V 50Hz
Whole power 13kw
Pneumatic source 0.6-0.9Mpa 1m³/min
Machine dimensions (L×W×H)1030×550×1330mm
Standard Configuration:
Reanin-K3000 mainframe 1 set
Reanin spray gun 1 set
Transfer pump 2 pcs
Heated hose 15m
Transfer pump hose 2 pcs
Whip hose 2 pcs
Air pipe 1 set
Tools and spare parts 1 set
English user manual 1 set
