K2000
Reanin
PRODUCT DESCRIPTION
Reanin-K2000 is a portable, economical and practical polyurethane spray and injection machine, suitable for two-component polyurethane spray technology. It is small in size, easy to operate and maintain, and is especially suitable for small area projects.

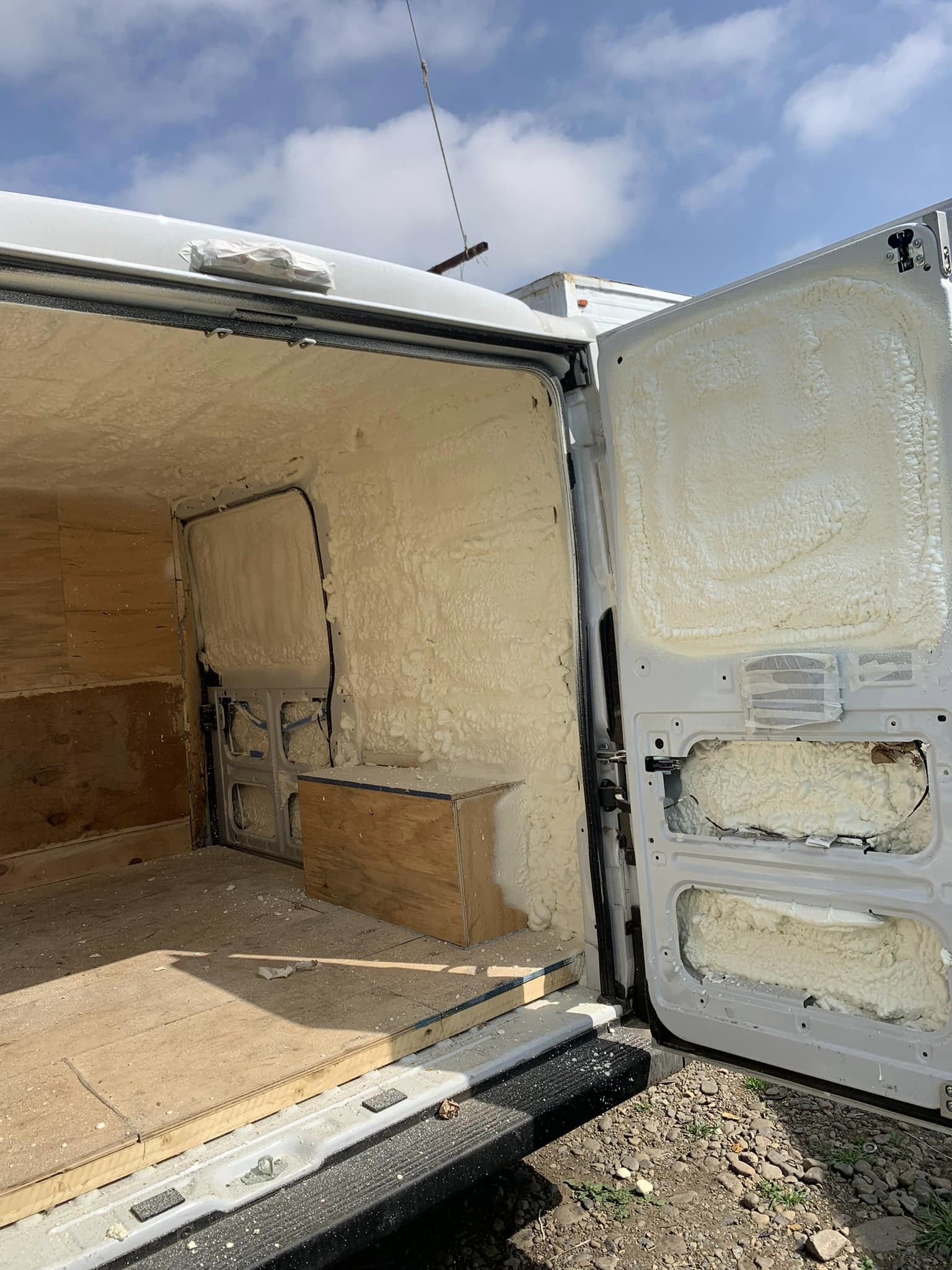

APPLICATION INDUSTRY

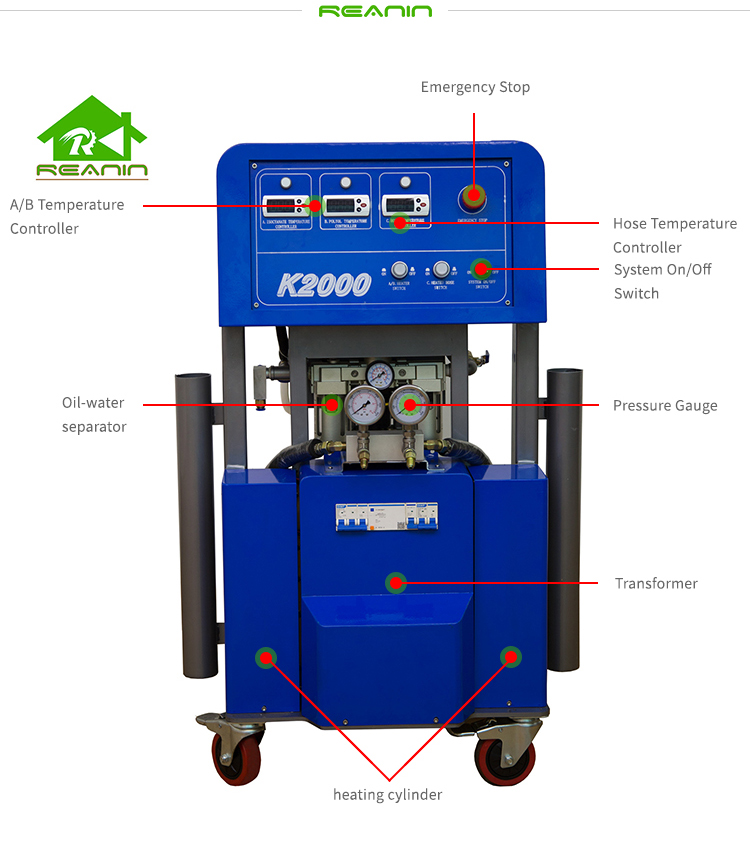

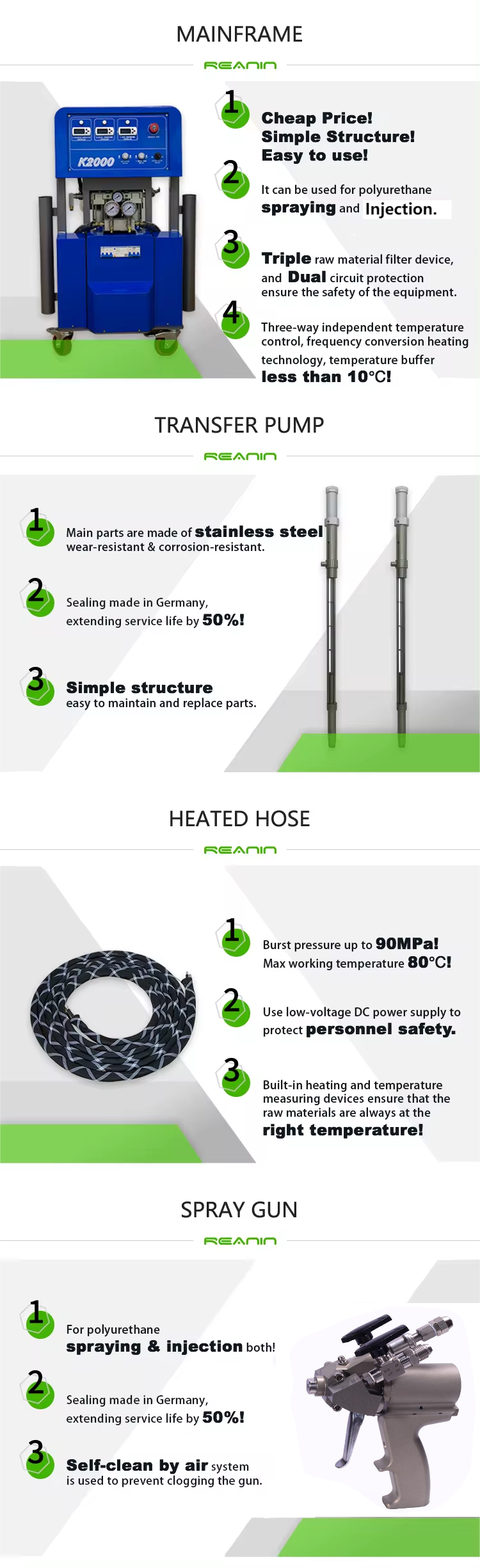

DETAILED PARTS
Technical Parameters
Model | Reanin-K2000 Polyurethane Spray/injection Foaming Machine |
Applicable materials | Polyurethane |
The ratio of raw material | 1:1 |
Viscosity range of raw materials | 200-1000CPS (under working temperature) |
Max working pressure | 15MPa |
Max fluid temperature | 80°C |
Max output | 10kg/min |
Max heated hose length (Optional) | 45m |
Heater power | 3000W×2 |
Heated hose max power | 2000W |
Drive mode | Full pneumatic |
Clean mode | Self-cleaning by air |
Voltage (Optional) | Single phase 220V 50Hz Three phase 380V 50Hz |
Whole power | 9kw |
| Pneumatic source | 0.5-0.8Mpa 1m³/min |
STANDARD CONFIGURATION
Reanin-K2000 mainframe | 1 set | Reanin spray gun | 1 set |
Transfer pump | 2 sets | Heated hose | 15m |
Transfer pump hose | 2 pcs | Whip hose | 2 pcs |
Air pipe | 1 set | Tools and spare parts | 1 set |
| English user manual | 1 set |
MACHINE SIZE
SHIPING PACKAGE
| Transportation Parameters (Based on standard configuration) | |
| Model | Reanin-K2000 pu foam spray machine |
| Package size (LXWXH) | 90X75X143cm |
| Net weight | 151kg |
| Gross weight | 185kg |
WORKSHOP
customer feedback
CONTACT US
Shandong Reanin Machinery Co.,Ltd
Add: Zhuangke Industrial Park, Suncun Town, High-Tech Zone, Jinan, Shandong Province, China.
Post code: 276000
Tel: +86-531-55565999
Fax: +86-531-55565999
Mob/WhatsApp/WeChat:
+86-18615199270
E-mail: maggie@reaninmachinery.com
