PRODUCT DESCRIPTION
Reanin-K3000 is a professional, cost-effective Spray Polyurethane Machine On Wall Or Roof. It is equipped with a specially designed horizontal booster pump, which not only has small fluctuations in working pressure, but also has less wearing parts and is easy to maintain.
APPLICATION INDUSTRY
DETAILED PARTS
Technical Parameters
Model | Reanin-K3000 Polyurethane spray/injection foaming machine |
Applicable materials | Polyurethane |
The ratio of raw material | 1:1 |
Viscosity range of raw materials | 200-1000CPS (under working temperature) |
Max working pressure | 20MPa |
Max fluid temperature | 80°C |
Max output | 11kg/min |
Max heated hose length (Optional) | 90m |
Heater power | 4500W×2 |
Heated hose max power | 3000W |
Drive mode | Full pneumatic |
Clean mode | Self-cleaning by air |
Voltage (Optional) | Single phase 220V 50Hz Three phase 380V 50Hz |
Whole power | 13kw |
| Pneumatic source | 0.6-0.9Mpa 1m³/min |

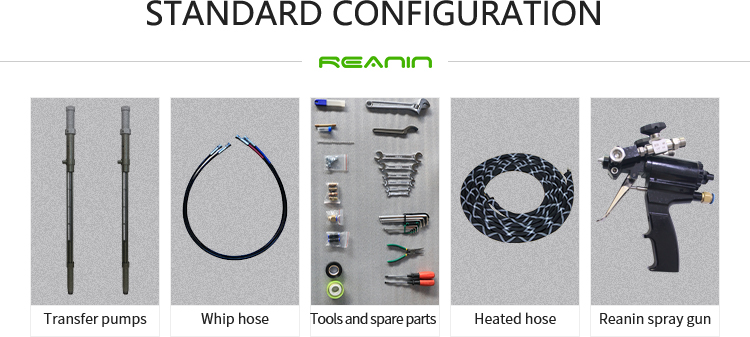

MAINFAME
Reanin-K3000 mainframe | 1 set | Reanin spray gun | 1 set |
Transfer pump | 2 sets | Heated hose | 15m |
Transfer pump hose | 2 pcs | Whip hose | 2 pcs |
Air pipe | 1 set | Tools and spare parts | 1 set |
| English user manual | 1 set |
MACHINE SIZE
SHIPING PACKAGE
| Transportation Parameters (Based on standard configuration) | |
| Model | Reanin-K3000 pu polyurethane spray injection insulation machine |
| Package size (LXWXH) | 110X80X145cm |
| Net weight | 183kg |
| Gross weight | 220kg |
